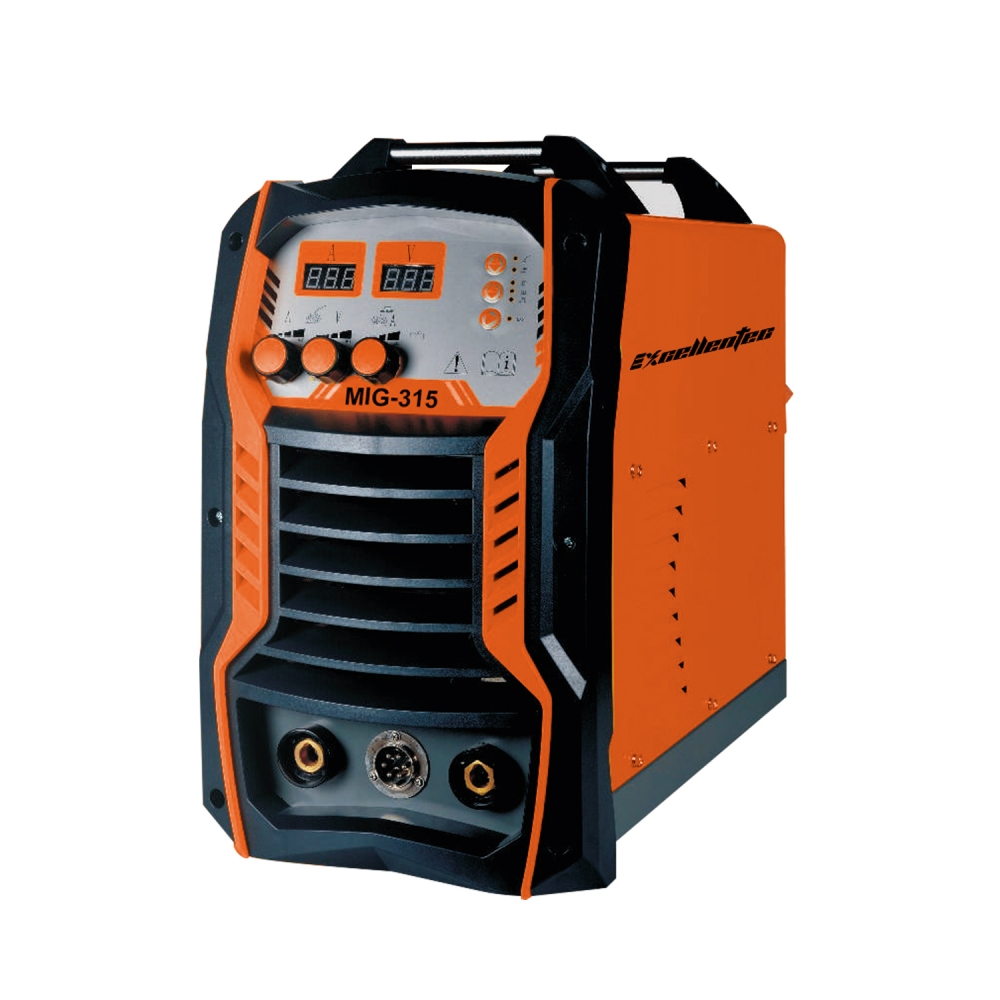

MIG welding machine

< >

MIG-315

Model：MIG-315

Input power Voltage Frequency(V,Hz)： AC220/380(three phase)±15%,50/60

Rated input power capacity(KVA): 8.3

Rated output current(A): 250

Rated output voltage(V): 26.5

Duty cycle %（25℃）： 60

Output current range.(A)： 50-280

Output voltage range(V)： 16.5-26.5

Insulation class：F

Case protection degree：IP21S

Overall dimension(mm): 480×204×303

Weight(KG)：18

Efficiency(%)： 85

Feeding speed(m/min): 2.5-13

Type of wire feeder：Separate wire feeder

Diameter of the wire feeder(mm): 270

Post-flow time(S): 1±0.5

Power factor (COSφ)： 0.93

Earth wire(mm2): ＞6

Welding thickness(mm): ＞0.8

Diameter of welding wire(mm):0.8/1.0

Product Characteristics:

*Adopting IGBT inverter technology, stable output,resistant electric network,strong fluctuation.

*Saving cost,promote efficiency,improve welding quality.

*Easy to operate,economical and practical.

*High welding speed and high rate of arc starting.

*Apply to weld carbon steel,alloyed steel,mild steel etc,can use many kinds of welding wire.

*Little spatter,deep welding pool,esthetic shaping of welding seams.

*suitable for 0.8mm and 1.0mm wire.
