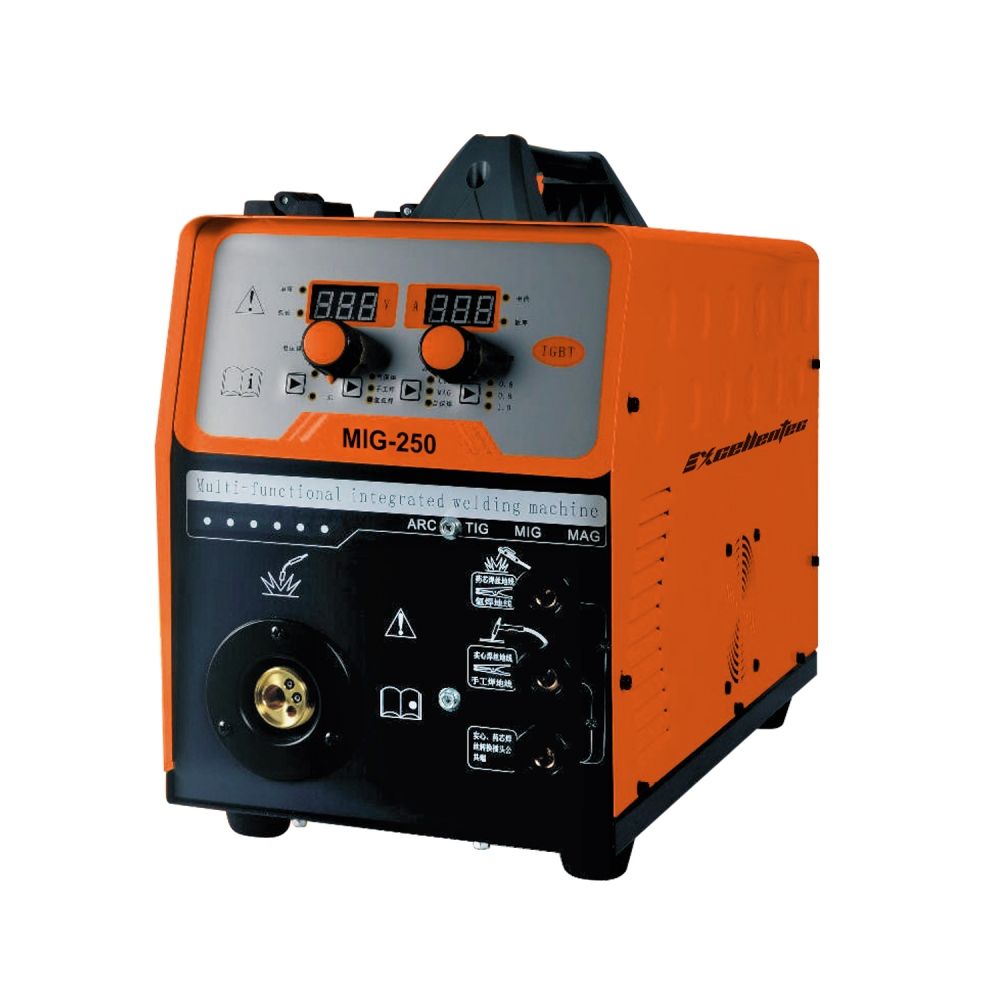

Model：MIG/MMA/TIG/ARC-250

Input power Voltage Frequency(V,Hz)： AC220(Single phase)±15%,50/60

Rated input power capacity(KVA): 8.3

MIG Rated output current(A): 250
TIG Rated output current(A): 200
MMA Rated output current(A): 200
CUT Rated output current(A): 40

Rated output voltage(V): 26.5

Duty cycle %（25℃）： 60

Output current range.(A)： 50-250

Output voltage range(V)： 16.5-26.5

Insulation class：F

Case protection degree：IP21S

Overall dimension(mm): 480×204×303

Weight(KG)：18

Efficiency(%)： 85

Feeding speed(m/min): 2.5-13

Type of wire feeder：Build-in

Diameter of the wire feeder(mm): 270

Post-flow time(S): 1±0.5

Power factor (COSφ)： 0.93

Earth wire(mm2): ＞6

Welding thickness(mm): ＞0.8

Diameter of welding wire(mm):0.8/1.0

Product Characteristics:

*Inverter IGBT technology,Multifunctional machine.

*One machine serve 4 functions: MIG,MMA,TIG,CUT.

*Easy to operate,economical and durable.

*Suitable for different kinds of welding condition.

*Suitable for weld carbon steel,alloyed steel,mild steel etc.
