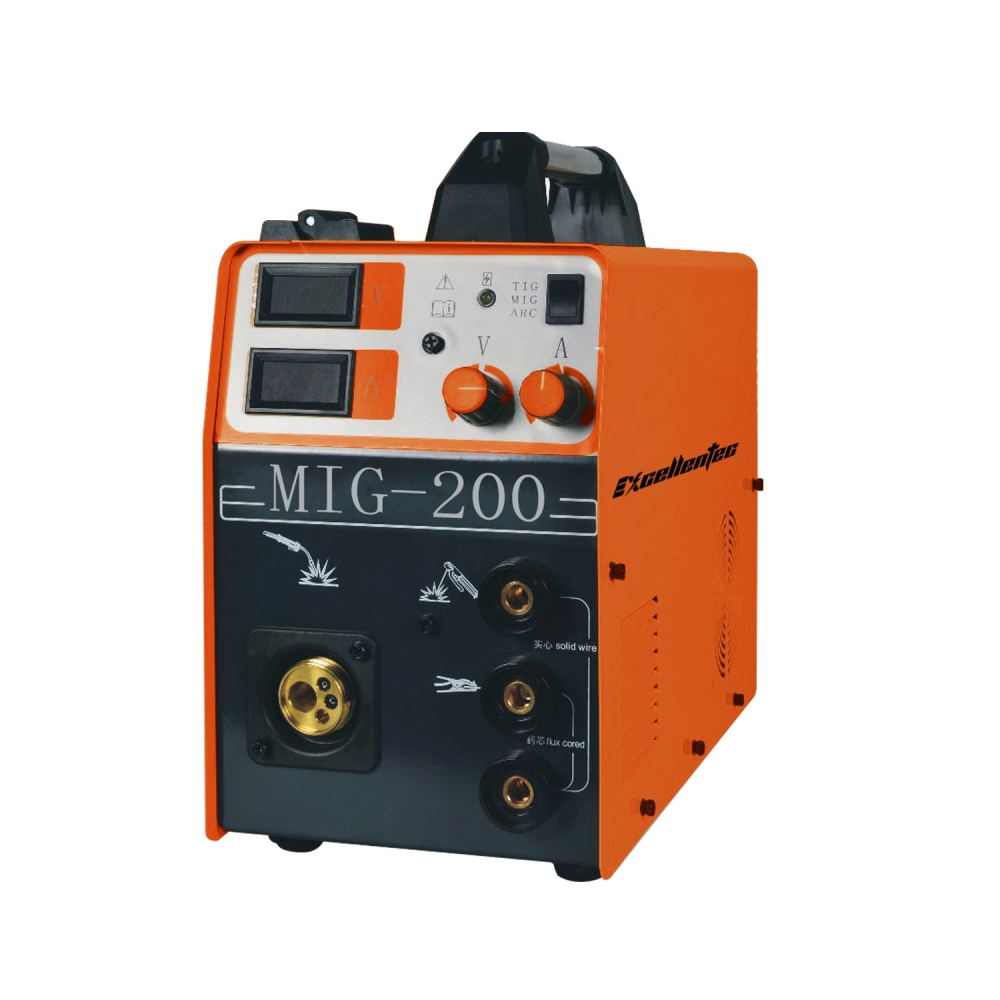

Model：NBC-200

Input power Voltage Frequency(V,Hz)： AC220/380(three phase)±15%,50/60

Rated input power capacity(KVA): 8.3

Rated output current(A): 200

Rated output voltage(V): 26.5

Duty cycle %（25℃）： 60

Output current range.(A)： 50-200

Output voltage range(V)： 16.5-26.5

Insulation class：F

Case protection degree：IP21S

Overall dimension(mm): 300×145×195

Weight(KG)：18

Efficiency(%)： 85

Feeding speed(m/min): 2.5-13

Type of wire feeder：Build-in

Post-flow time(S): 1±0.5

Power factor (COSφ)： 0.93

Earth wire(mm2): 16

Welding thickness(mm): ＞0.8

Diameter of welding wire(mm):0.8/1.0 (1kg)

Product Characteristics:

*Adopting IGBT inverter technology,Anti power flunctuation.

*Low cost,promote efficiency,improve welding quality.

*Easy to operate,economical and practical.

*One kg wire spool,cost low and easy to carry.

*Apply to weld carbon steel,alloyed steel,mild steel etc,

*Little spatter,suitable for flux-cored wire.
