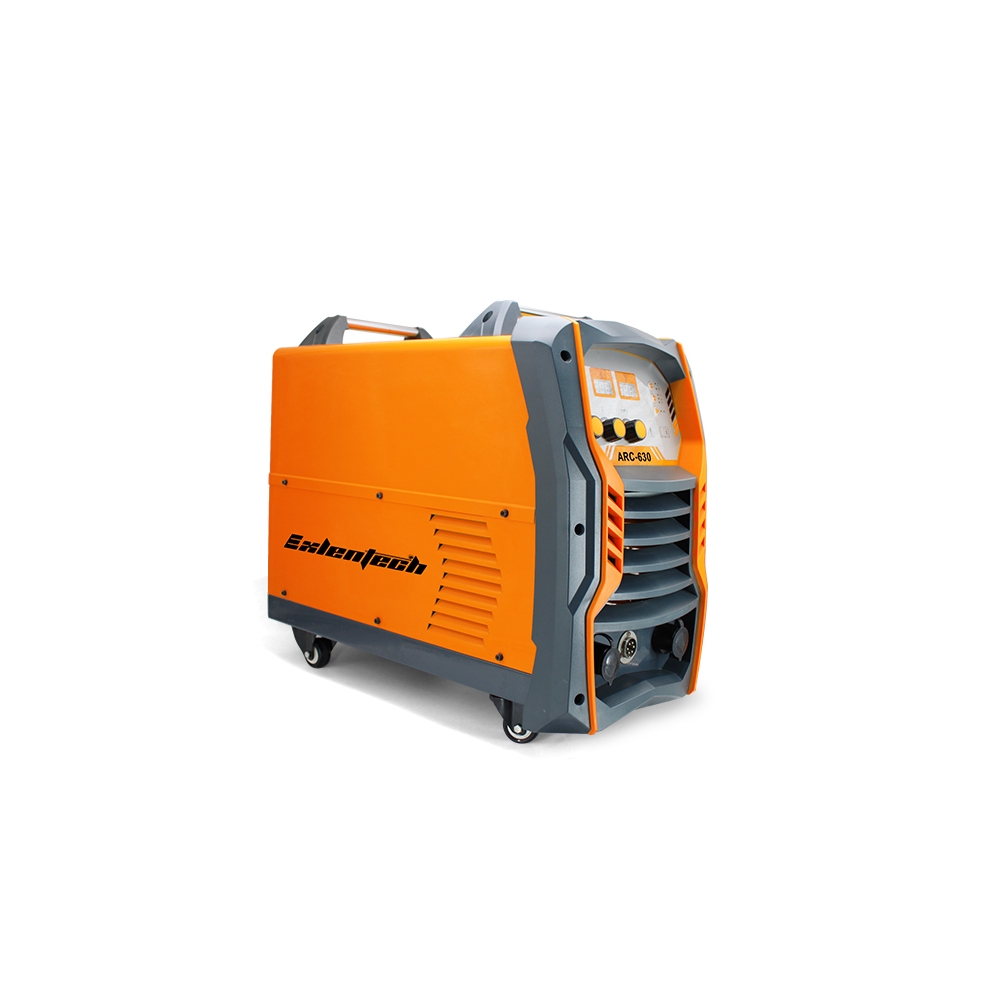

Model: ARC-630（IGBT)

Input power Voltage Frequency(V,Hz)： AC380(three phase)±15%,50/60

Rated input power capacity(KVA): 25

No-load voltage(v)：74

Output current range.(A)： 40-630

Rated output voltage(V)： 44

Duty cycle (%)（25℃）： 60

No-load loss(w)： 200

Efficiency(%)： 85

Power factor (COSφ)： 0.93

Insulation class：F

Weight(KG)：50

Overall dimension(mm)：640*325*570

Case protection degree：IP21S

Suitable diameter of rod(mm): 1.6-6

Product Characteristics:

*Adopting imported accessories and high reliability control circuit;stable welding current,excellent welding performance.

*Adopting "arc force"adjusting function,insure the best arc function.applicable to carbon steel,stainless steel.

*With the function of over heat,over current.over voltage protection.

*One machine serves several purposes.

*Work stably even extend the wire of the welding machine.

*Widely used in the area of machine installing,petroleum,chemical industry,vessel,etc.
