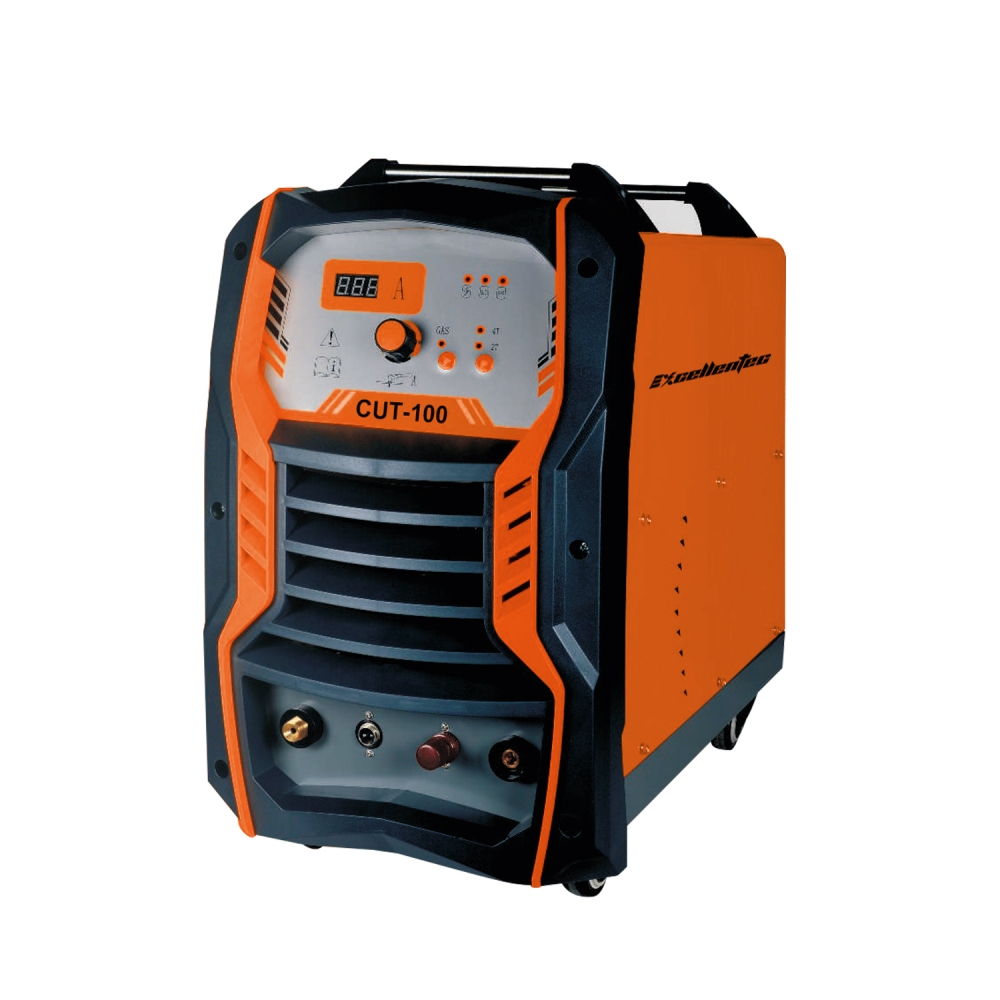

Plasma cutting machine

< >

CUT-100

Model: LGK-100(IGBT)

Input power Voltage Frequency(V,Hz)：AC380(three phase)±15%,50/60

Rated input power capacity(KVA): 15

No-load voltage(v)： 268

Output current range.(A)： 20-100

Rated output voltage(V)： 120

Duty cycle (%)（25℃）: 60

No-load loss(w) : 60

Arc-starting: touch

Efficiency(%)： 85

Power factor (COSφ)： 0.93

Insulation class： F

Weight(KG)： 38

Overall dimension(mm):640*325*570

Case protection degree： IP21S

Air compressor displacement(S)：0.36

Max cutting thickness(mm): 45

Product Characteristics:

*Adjustable cutting current,satisfy different requirement of material,thickness,cutting speed.esthetic cutting area.

*Can be used to cut carbon steel,stainless steel,galvanized steel,copper,aluminum etc.

*Build-in default phase protection,over and low voltage protection,over heat protection,and low pressure of compressed air protection etc,make the machine work reliably.

*Easy to operate. The cutting area is flat and smooth.
