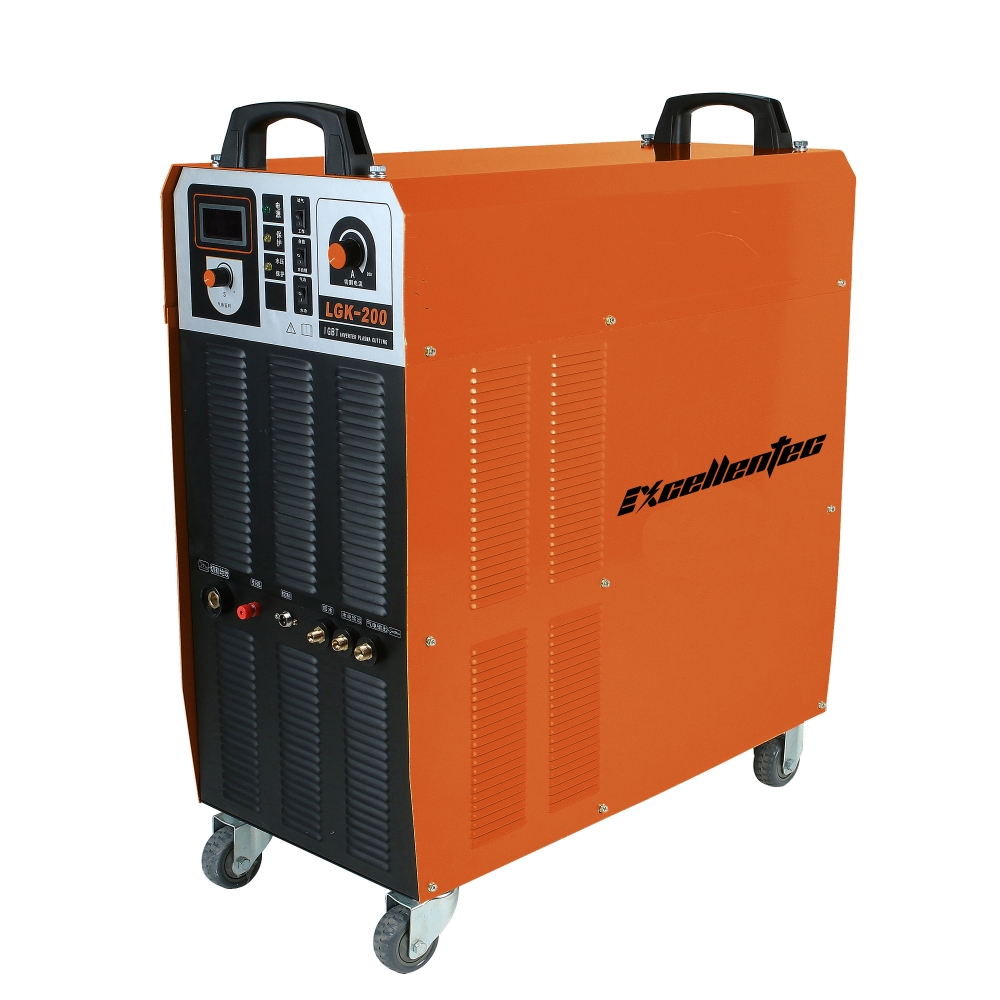

Model: LGK-200(IGBT)

Input power Voltage Frequency(V,Hz)：AC380(three phase)±15%,50/60

Rated input power capacity(KVA): 33

No-load voltage(v)： 330

Output current range.(A)： 40-200

Rated output voltage(V)： 170

Duty cycle (%)（25℃）: 100

No-load loss(w) : 60

Arc-starting: Non-touch

Efficiency(%)： 85

Power factor (COSφ)： 0.93

Insulation class： F

Weight(KG)： 75

Overall dimension(mm):820*390*940

Case protection degree： IP21S

Air compressor displacement(S)：＞0.9

Max cutting thickness(mm): 70

Product features:

* Preset current function, stepless regulation.

* High success rate of starting arc, good arc stiffness, clean incision, good process performance.

* Water cooling interface, high sensitivity water pressure switch to protect the cutting torch in the state of water shortage.

* High duty cycle, Support long time high current cutting.

* Non-contact arc starting，good instantaneous arc starting performance

* Perfect protection system: over current, over voltage, over heat, overload protection.
