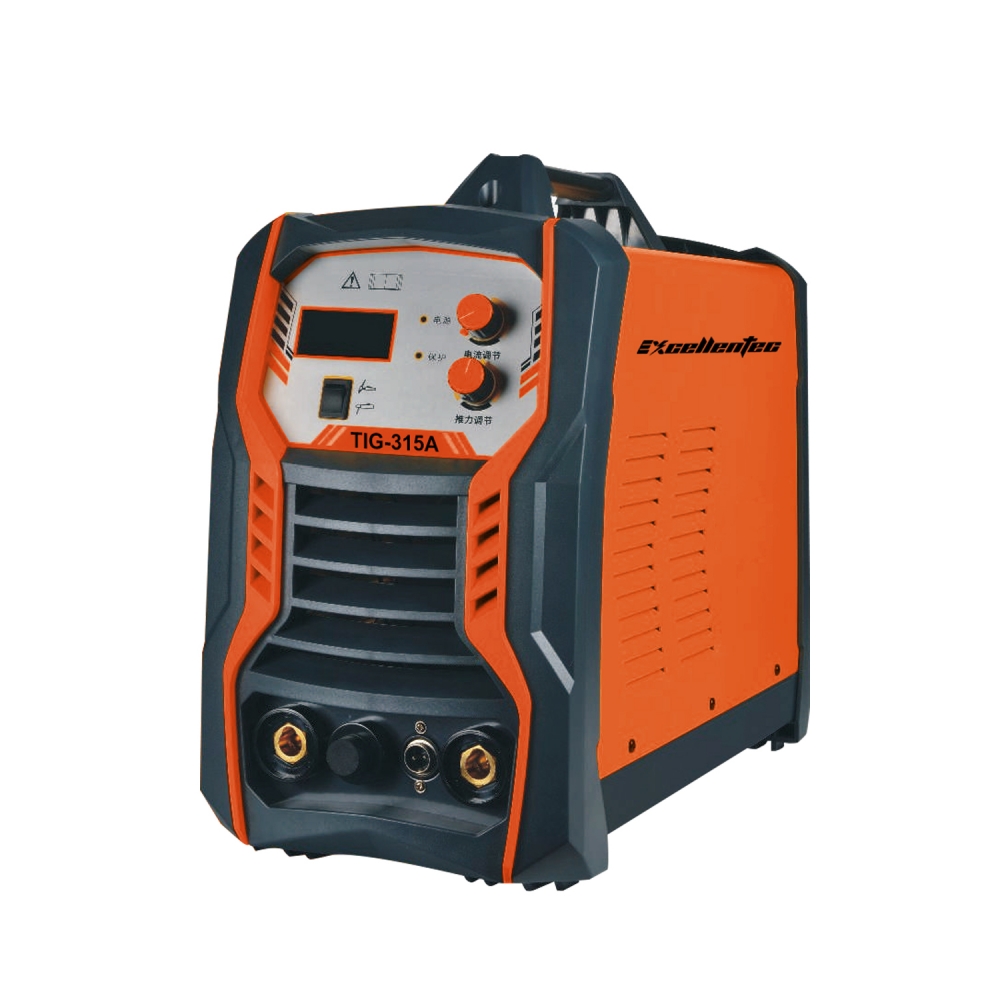

Model TIG/ARC-315A

Input power Voltage Frequency(V,Hz): AC380(three phase)±15%,50/60

Rated input power capacity(KVA)： 8.9

No-load voltage(v)： 55

Output current range.(A)： 10-315

Rated output voltage(V)： 22.6

Duty cycle (%)（25℃）： 60

No-load loss(w)： 100

Thrust force adjustment range: 10-270

Efficiency(%)： 85

Power factor (COSφ)： 0.93

Insulation class：F

Weight(KG)： 38

Overall dimension(mm)：562×303×467

Case protection degree：IP21S

Welding thickness(mm): 0.5-14

Current down-slope time(s): 0-5

Product Characteristics:

*Adopting Inverter Mosfet technology,constant current,accurate current control.

*High efficiency,energy saving,small in size,light in weight,easy to carry.

*Apply to weld stainless steel,carbon steel,alloyed steel,titanium etc.

*Especially suitble to thin sheet welding.

*High frequency to increase voltage,stricking arc.strong welding osmotic force.
