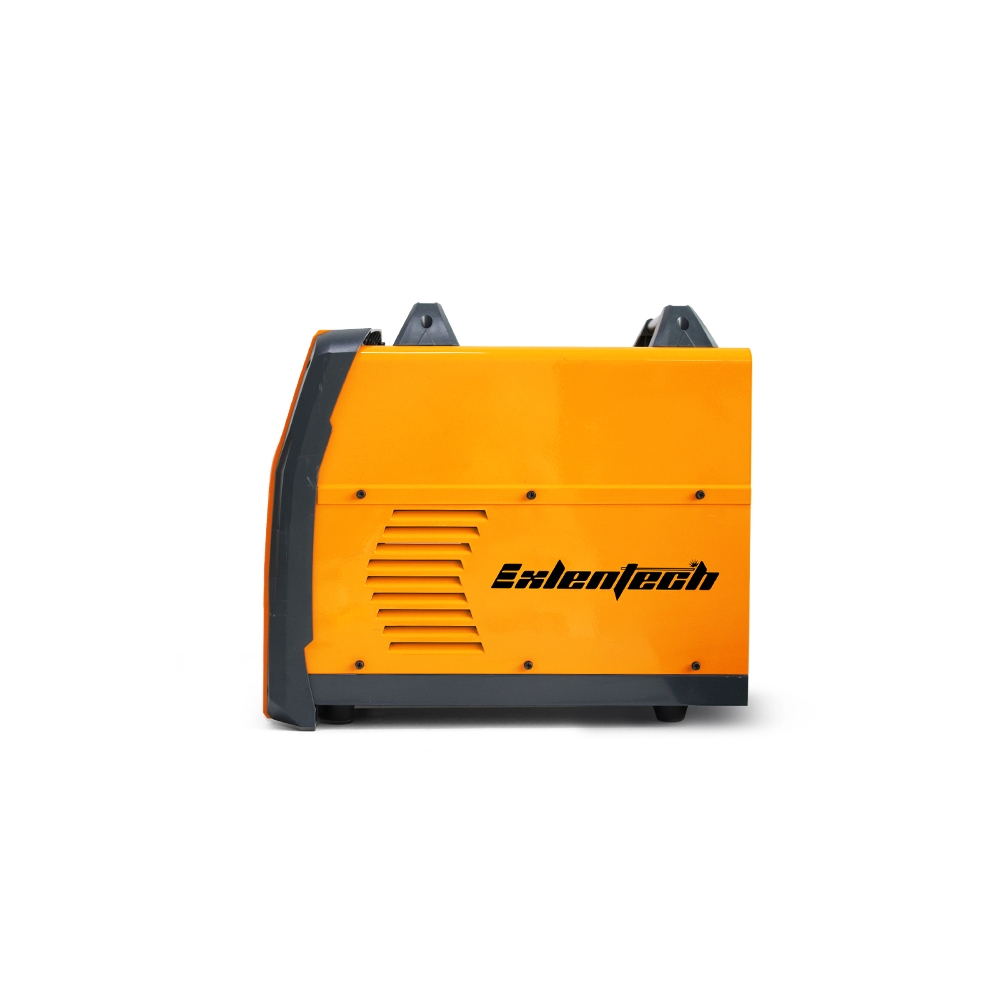

Model ZX7-500 (IGBT)

Input power Voltage Frequency(V,Hz): AC380(three phase)±15%,50/60

Rated input power capacity(KVA): 25

No-load voltage(v): 74

Output current range.(A): 40-500

Rated output voltage(V): 40

Duty cycle (%)(25ºC): 60

No-load loss(w): 200

Efficiency(%): 85

Power factor (COSφ): 0.93

Insulation class: F

Weight(KG): 45

Overall dimension(mm): 540*270*470

Case protection degree: IP21S

Suitable diameter of rod(mm): 1.6-6

Product Characteristics:

*Adopting imported electric componients and high reliability control circuit;stable welding current,excellent welding performance.

*Adopting "arc force"adjusting function,insure the best arc function.applicable to carbon steel,stainless steel.

*With the function of over heat,over current.over voltage protection.

*One machine serves several purposes.

*Work stably even extend the wire of the welding machine.

*Widely used in the area of machine installing,petroleum,chemical industry,vessel,etc.
