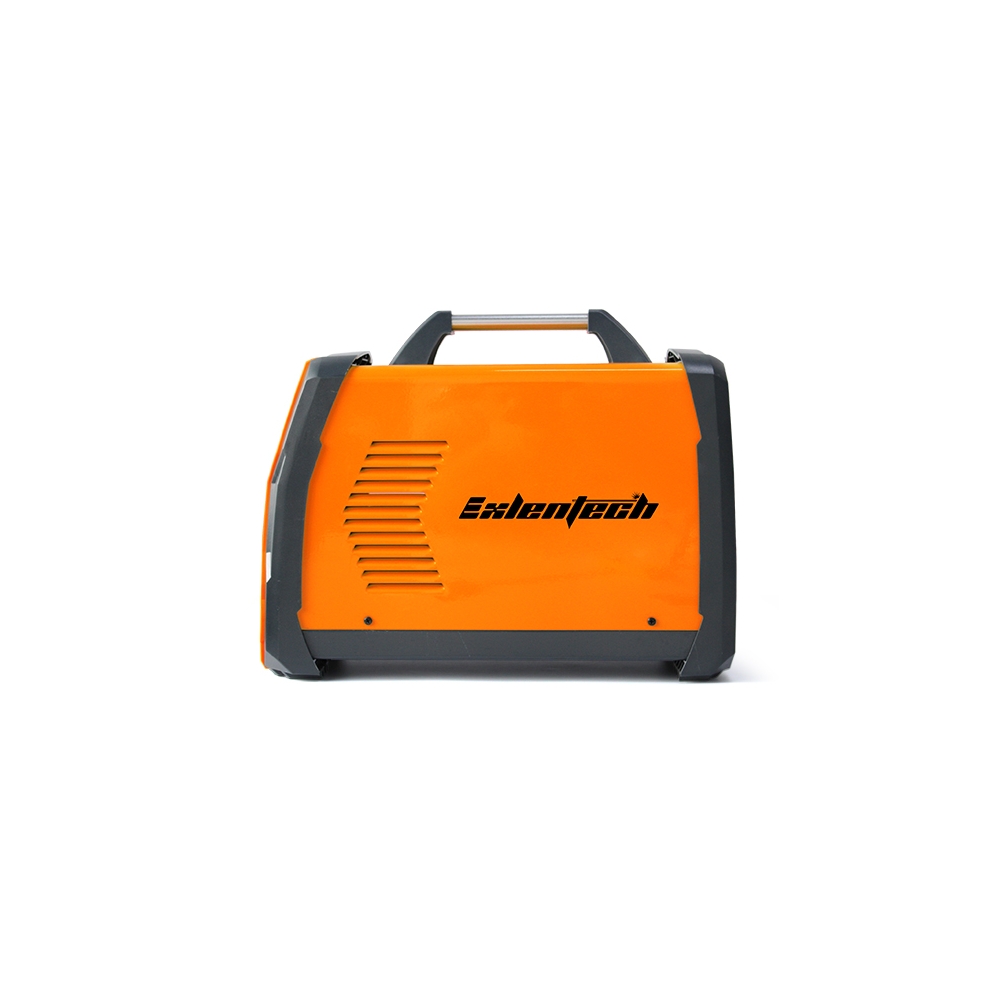

Model: ZX7-300

Input power Voltage Frequency(V,Hz): AC380(three phase)±15%,50/60

Rated input power capacity(KVA) : 12

No-load voltage(v): 54

Output current range.(A): 20-300

Rated output voltage(V): 32

Duty cycle (%)(25ºC): 60

No-load loss(w): 60

Efficiency(%): 85

Power factor (COSφ): 0.93

Insulation class: F

Weight(KG): 21

Overall dimension(mm): 435*180*340

Case protection degree: IP21S

Suitable diameter of rod(mm): 1.6-4

Product Characteristics:

*Reliable quality,steady performance, automatic compensation for voltage fluctuation.

*High duty cycle,support long time welding,with the function of over heat,overload protection.

*Stable arc,esthetic welding seam,deep welding pool,little spatter,with function of power force compensation.

*35-50 big connector,high speed fan.

*Continue working on 4.0mm electrode rod.
