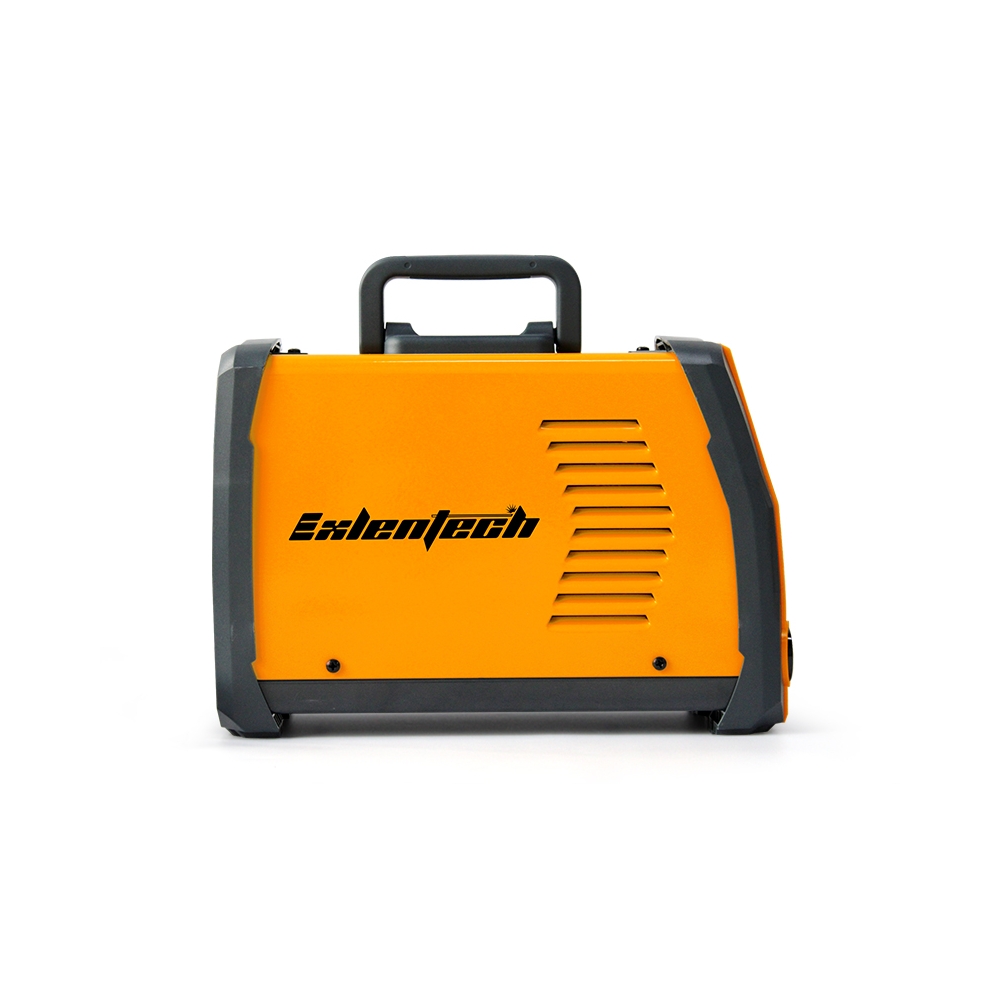

Model: ZX7-250

Input power Voltage Frequency(V,Hz): AC380(three phase)±15%,50/60

Rated input power capacity(KVA) : 9.4

No-load voltage(v): 54

Output current range.(A): 20-250

Rated output voltage(V): 30

Duty cycle (%)(25ºC): 60

No-load loss(w): 60

Efficiency(%): 85

Power factor (COSφ): 0.93

Insulation class: F

Weight(KG): 21

Overall dimension(mm): 390*160*300

Case protection degree: IP21S

Suitable diameter of rod(mm): 1.6-4

Product Characteristics:

*Inverter technology makes the welder more powerful.

*Dc inverter technology make the welder run in high utilization rate of power.

*Low open circuit loss and has good welding quality.

*Digital control with Hot start,Arc force,Anti-stick,VRD,etc.make it more convenient to use.
