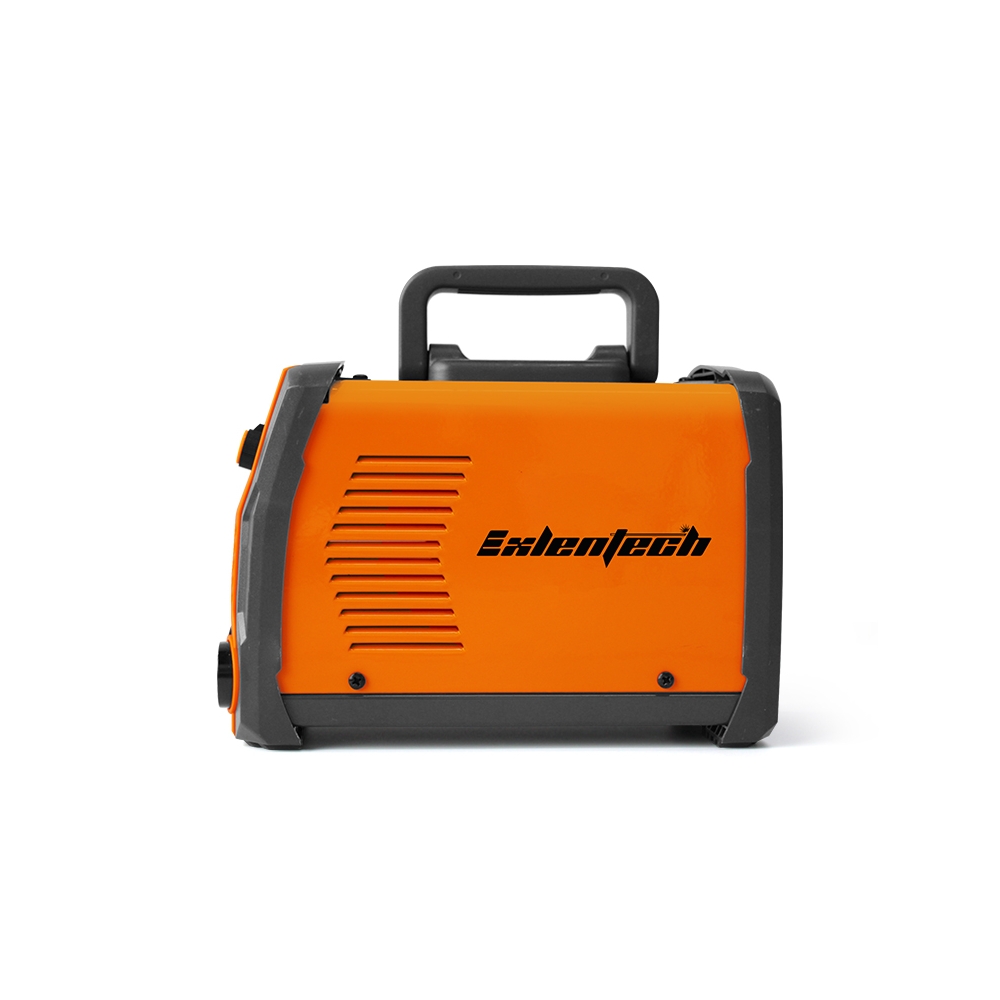

Model: ARC-140

Input power Voltage Frequency(V,Hz): AC220(single phase)±15%,50/60

Rated input power capacity(KVA) : 4.5

No-load voltage(v): 56

Output current range.(A): 20-140

Rated output voltage(V): 25.6

Duty cycle (%)(25ºC): 60

No-load loss(w): 40

Efficiency(%): 85

Power factor (COSφ): 0.93

Insulation class: F

Weight(KG): 5

Overall dimension(mm): 315×115×200

Case protection degree: IP21S

Suitable diameter of rod(mm): 1.6-3.2

Product Characteristics:

*Mini portable size ARC welder,suitable for carbon steel welding.

*Single phase power supply.

*Small size but powerful,easy to operate.

*With perfect Automatic protection of over current,over voltage.

*Support continuous work,stable performance.

*Suitable for home use & hardware industry.
